8 Step CV Sequencer / Analog / Control Voltage

Tweet

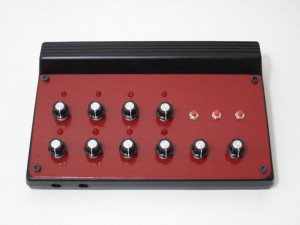

Here we have an 8 step analog sequencer that puts out control voltage. This thing mates up well with anything that takes CV.
Connect it to your Voice of Saturn synth / soundlab / Atari punk console / circuit bent projects….

This unit is based on a 555 timer chip and a 4015 dual shift register.
The 4015 dual shift register allows you to “program” or introduce more than one step at a time, allowing you to mash up the pattern and get some pretty interesting results.

In the video:

Sonic Forest + a little delay and reverb / 2 diy 8 step sequencers / LZX Monolith / Electro Harmonix Memory BoyThe Sequencer puts out 0-6v DC.
9v DC power supply is included. (Universal power supply! It accepts 100-240v)

Features:

8 pitch control steps
Master pitch which allows you to raise or lower the entire sequence together in a linear fashion.
Tempo control
On / program button
Clear / remove steps button
Off button
2 CV outs
1 Clock in
